Fuste is china Professional rubber hose manufactuer for 18years . provide the fuel line rubber hose SAE J30 R6 R7 for Automotive & Powersports lik
Fuste is china Professional rubber hose manufactuer for 18years . provide the fuel line rubber hose SAE J30 R6 R7 for Automotive & Powersports like snowmobile, motorcycle, UTV/ATV, golf car, off-load vehicles, golf car and so on .
If want know more info pls contat us : sales2@fuste.com.cn

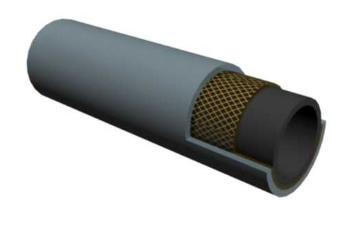

Construction:
Tube: Smooth black fuel resistant nitrile synthetic rubber(NBR)
this type of hose is Nitrile rubber all the way through, and has a single ply of fabric reinforcement.
Reinforcement: High strength polyester braided
Cover: Smooth black ozone and abrasion resistant synthetic rubber
Characteristic:
● Aging resistant; insulation; acid and alkaline resistant
.Fuel resistance:CE10,CE20,CM15,CM85, OXIDIZED FUEL,FUEL A/B/C/D
● Flammability resistance:Self extinguish at 10 secs
●Ozone resistance:50pphm*48H
Temperature: -40℃ (-104 ℉ ) to +100℃ (+212 ℉ )
Application:
Fuel hose mainly used for auto , truck and lawnmower fuel engine fuel systems. Fuste fuel line is CARB approved with a permeability meet CARB. This section covers hose which may be supplied either coupled or uncoupled for use with gasoline, diesel fuel, lubrication oil, or the vapor present in either the fuel system or in the crankcase of internal combustion engines in mobile, stationary, and marine applications
|
Part No |
ID (in.) |
OD (mm) |
Working Pressure (psi) |
Working Pressure (bar) |
Burst Pressure (psi) |
Burst Pressure (bar) |
Tolearance |
|
6011101 |
5/16’’ |
14.3 |
max. 300 |
20 |
max.900 |
60 |
±0.4mm |
|
6011102 |
3/8’’ |
15.9 |
max. 300 |
20 |
max.900 |
60 |
±0.4mm |
|
6011103 |
1/2’’ |
19.8 |
max. 300 |
20 |
max.900 |
60 |
±0.4mm |
|
6011104 |
5/8’’ |
23.8 |
max. 300 |
20 |
max.900 |
60 |
±0.4mm |
|
6011105 |
3/4’’ |
22.2 |
max. 300 |
20 |
max.900 |
60 |
±0.4mm |
|
6011106 |
1’’ |
28.6 |
max. 300 |
20 |
max.900 |
60 |
±0.4mm |
Cooperated customer : Honda , Yamaha , Geely , PSA, Volkswagen and other auto customer .
Fuste is an IATF 16949 and D-U-NS registered rubber hose supplier that specialize in product the rubber hose in china . Whether your need custom rubber hose standard products, we’re ready assist you. Contact us to get started.
