Fuste Rubber hose manufactuer can custom many kinds of OEM rubber hose for customer , and can help you check if the rubber hose can be reality and which place need to be modify .

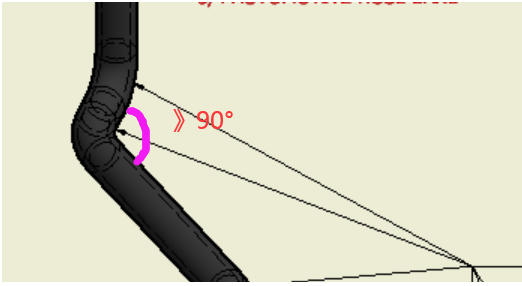

Bend rubber hose angel
For an example :
An rubber hose should be >90 °

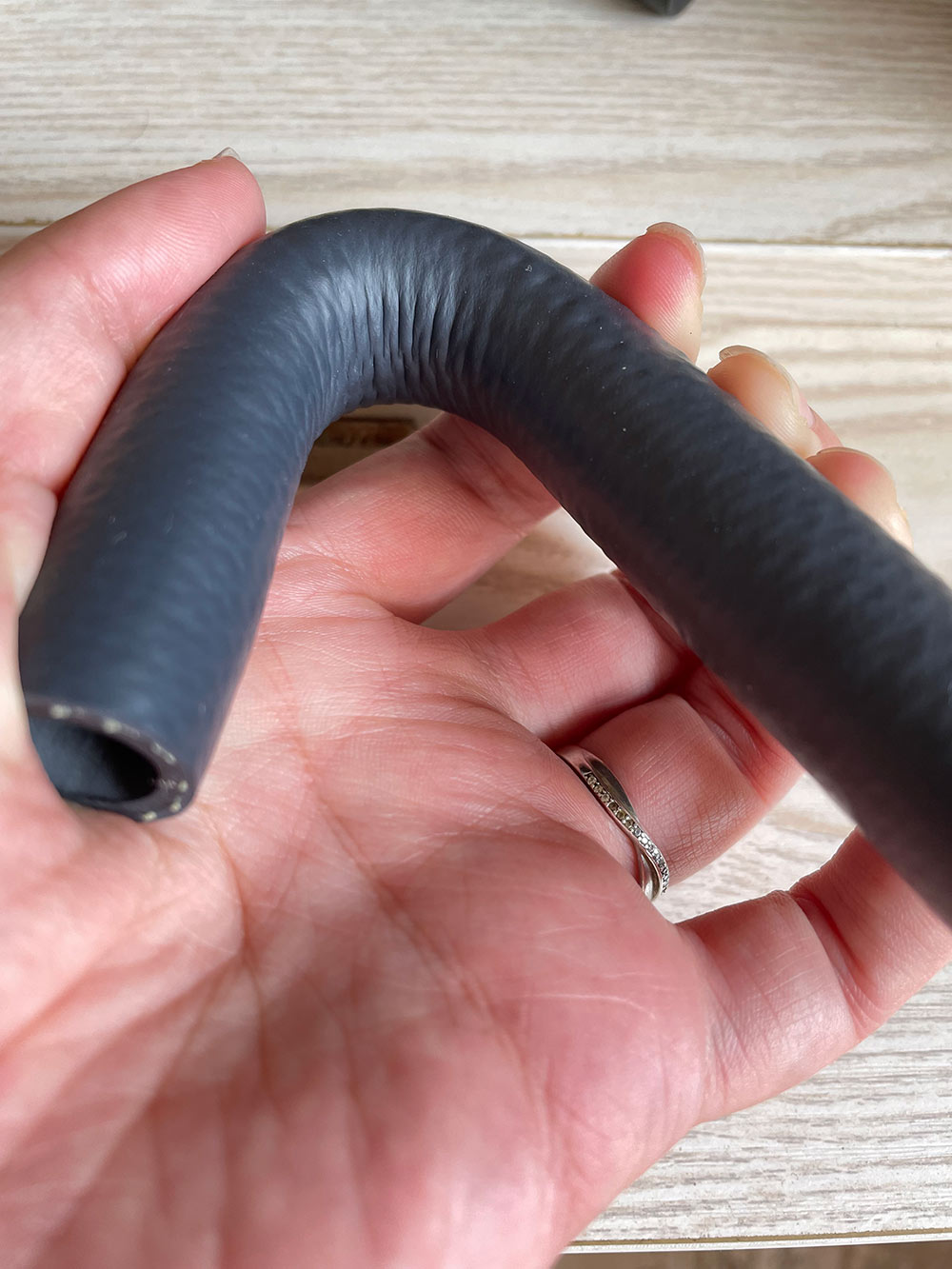

or it may have many defect kink mark during production like bellow:

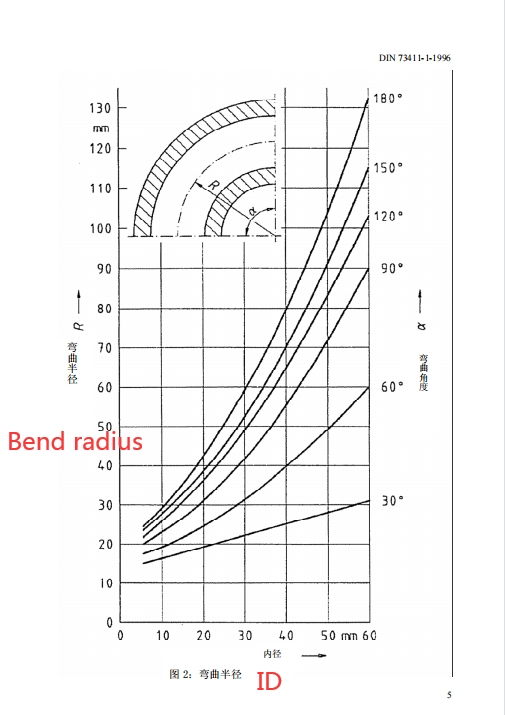

Bend radius
When you do the rubber hose design , should check if the radius higher than bellow .

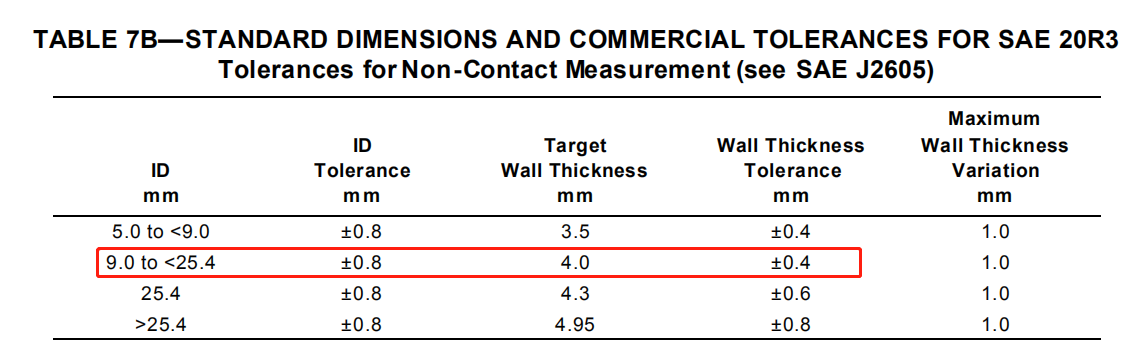

Every kind of rubber hose will working different bursting pressure , tempreture , and have different diameter , the application ,we should deisgn the thickness and tolerance based on these parameters .
For example :
The tolerance should smaller or equal the data listed above.the thickness should be higher or equal the data listed above.
Fuste can custom all kinds of rubber hose , include the FKM, NBR, ACM,NBR+PVC, EPDM rubber hose and so on . we not only help you with production , but also provide you different technical solution to help you with the design and save your cost . Welcome to call us sales2@fuste.com.cn
