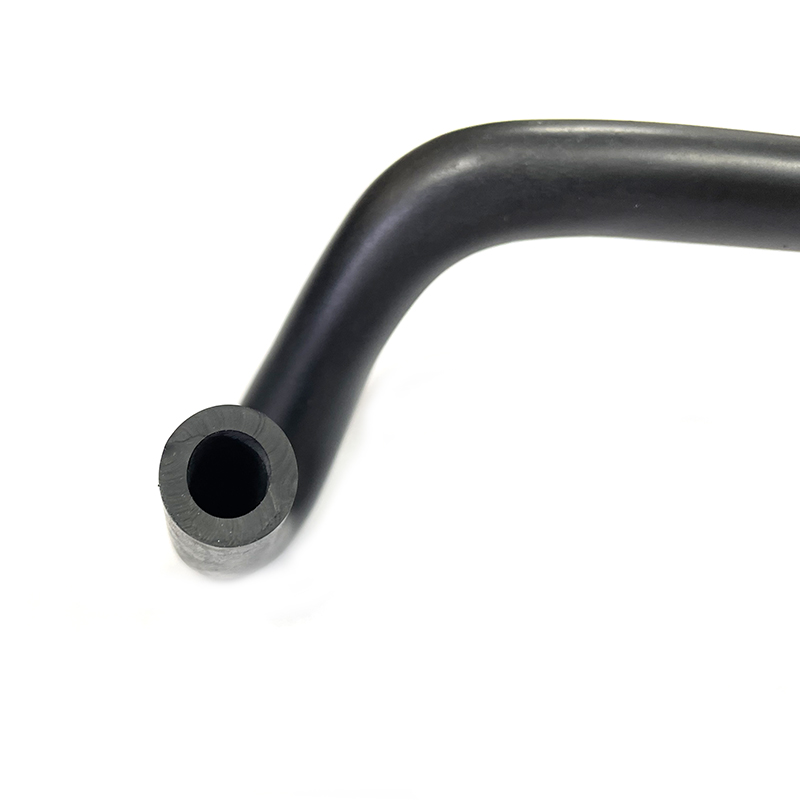

SAE J20 R4 EPDM Braid Water hose

SAE J20 R4 EPDM Braid Water hose

Used for Transmission System,Power Steering System,Brake System , Fuel Supply System ,Cooling System

 Part Type: extrusion
Shape: as drawing such as 2D,3D or sample
Material Composition: EPDM, SI , NBR, SBR, NR,CR, FKM
Aging resistance: 120℃; Low temp resistance: -40℃
Vacuum Collapse resistance
Ozone resistance

Contact Us:sales2@fuste.com.cn

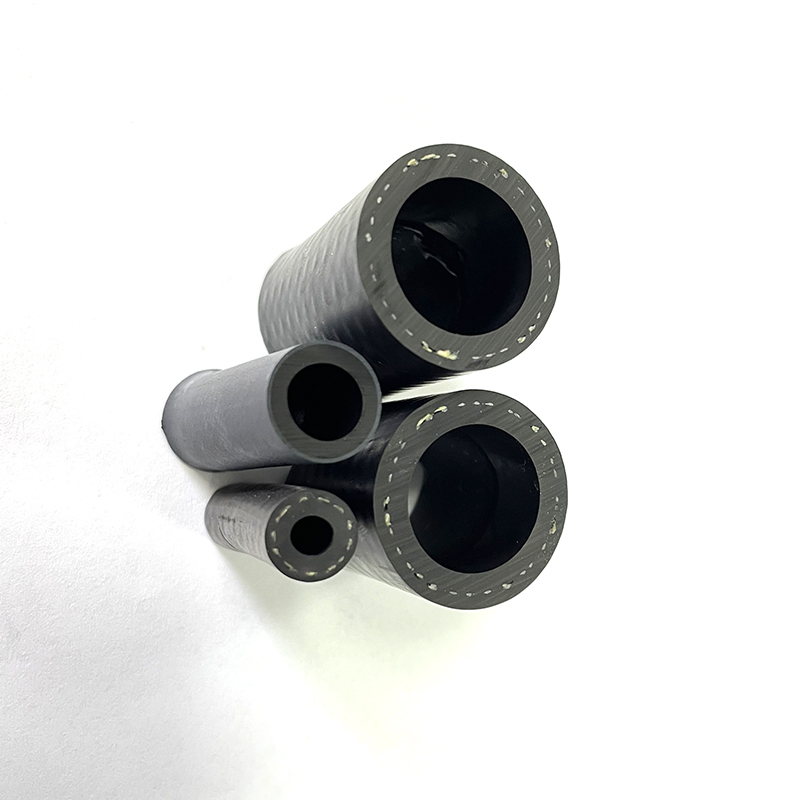

SAE J20 R4 EPDM braid hose is widely used for water hose , the bursting pressure is 150 P.S.I.

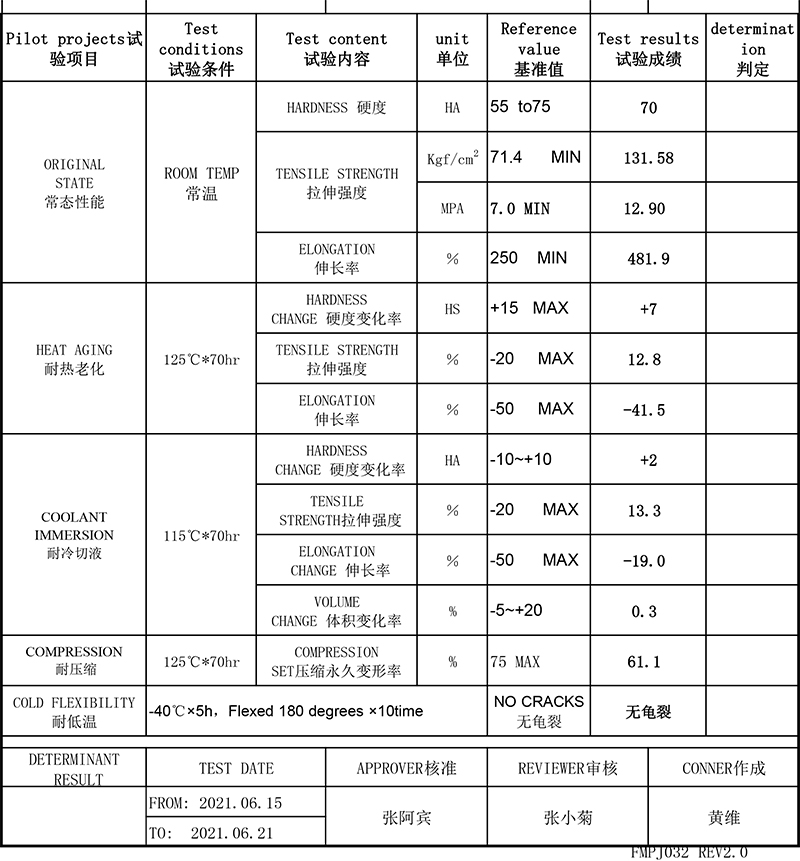

Pls kindly find the material test report bellow for the hose :

Our custom rubber hose very good compression set, high tensile strength, excellent weathering, ozone, UV, water, steam, high and low temperature resistance.

Used for bellow system ：

Cooling System ：
1. Radiator coolant inlet hose
2. Radiator coolant return hose
3. Auxiliary water hose
4.Connection hose
5.Front Heater I/O hose
6. Back Heater I/O hose
7.Air condition drain hose
8.Skylight drain hose

Our rubber hose have bellow advantage :

• MULTIPURPOSE HOSES

NBR, ACM, CR,  CSM, EPDM, ECO, FKM, NBR,PVC are suitable for endless applications with great possibilities of combination with.

•  RESISTANT to pressure

 resistant to pressure, compact and robust, all hoses depending on their use are manufactured with the most suitable materials

• MAXIMUM FLEXIBILITY

The construction of the rubber hoses and embedded yarn, as well as the aramid reinforcements, give the hoses a great flexibility.

• CUSTOMIZED

The hoses can be personalized with the name of the customer, with different size according to the drawing.

Fuste is an IATF 16949 and D-U-NS registered company that specialize in product the rubber hose in china . Whether your need custom rubber hose standard products, we’re ready assist you. Contact us to get started.
